250 Ton Servo Controlled Slide Table Hydraulic Press

250 Ton Servo Controlled Slide Table Hydraulic Press

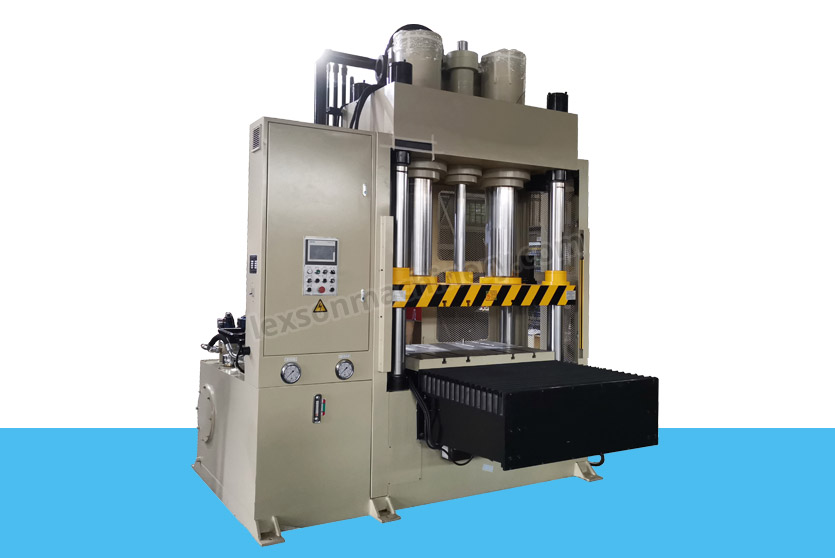

Lexson A01S-250T is built to be a four-column hydraulic press, controlled by permanent magnet synchronous servo motor, T slotted bed table and sliding platen used for mould locking.  Compare with a bench top press or a floor stand C frame hydraulic press, four post hydraulic press sometimes is not much the most suitable frame for feeding and unloading, a four-column hydrualic press that has slide table helps.

250 Ton Servo Controlled Slide Table Hydraulic Press

250 Ton Servo Controlled Slide Table Hydraulic Press

250 Ton Servo Controlled Slide Table Hydraulic Press

Model No. Lexson A01S-250T
Structure Four Column
Drive Mode Servo Motor
Nominal Force 2500 KN
Table Size 800*600 mm
Daylight Open 700
Stroke 500 mm
System Pressure 250 bar
Motor 23 KW
Power Supply AC 3 Phase 415V
Rated Current 35A
Slide Table Stroke 600
Cylinders 3 cylinders(high speed+pressing )
250 Ton Servo Controlled Slide Table Hydraulic Press

250 Ton Servo Controlled Slide Table Hydraulic Press

The 250 Ton Servo Controlled Slide Table Hydraulic Press Lexson builds has these advantages:



  • Utilizing permanent magnet synchronous servo motor, machine ‘s quiet
  • 50-70% less electricity consumption than conventional hydraulic press machine
  • Hydraulic decompression control
  • Safe operation
  • Position control
  • Time control
  • Pressure control
  • All these control on HMI
  • 10”HD Human-machine Interface
  • NEMA enclosures
  • Industry standard components
  • Portable operation console
  • Two-hand start button
  • Emergency stop button
  • Manual & Semi-automatic
  • Slide rails for slide table to slide in and out
  • Siemens 10”HMI & PLC
