Die Cutting Press

Product Description

Die cutting press is the machine of using a cutting die to cut out shapes of low-strength material such as leather, paper sheet, fabric, foam, cloth, plastics, metalwork, and plywood. With 24 years extensive experience, Lexson die cutting press is highly optimized-design for different die cutting requirements, making it more intuitive and easy operation to reduce the need for skilled operators. With superrigidity of 4-post frame structure and precision bed-to-ram parallelism, Lexson die-cutting machines are helping our customers to achieve quality die-cutting parts across the globe.

All die cutting presses in Lexson are guided by quality graphite-impregnated self-lubricated bronze bushings and four solid, chrome-plated posts. All parameters (tonnage, stroke, daylight, bed sizes and so on) are customized to best meet the cutting requirements. Our hydraulic die cutting press solutions for die cutting machinery are always helping our clients to achieve quality die-cutting result and ensuring reliable operation and years of maintenance-free.

ADVANTAGES

With 24 years experience in the die-cut industry, Lexson can provide die cutting solutions for:

  • Leather die cutting machine
  • Plywood puzzle die-cutting
  • Fabric die cutting machine
  • Paper sheet die cutting
  • Small batch die-cutting for mobile phone screen protector
  • Shape cutting machine for rubber, foam, plastics

Advantages of Lexson die cutting press:

  • Pre-sale cutting test is available
  • Lexson can work directly with your cutting tool supplier
  • Modular design, customized to your cutting specifications
  • Superior rigidity and bed to platen parallelism for perfect cutting result
  • Precision-guided moving slide (platen)
  • Fast, easy and safe setup and operation
  • Years of maintenance-free and reliable operation.

Lexson offers several standard 4 post die cut presses. These standardized 4 posts die-cutting press can also be modified with specific tonnage, stroke, shut height, bed size to meet your special needs.

MACHINE PARAMETERS

Detailed technical specification of the Lexson-A01 series four-column die cutting press:

Please note that we can custom-build hydraulic die cutting presses directly to your specifications.

Description

Lexson-A01 10T Lexson-A01 20T Lexson-A01 50T Lexson-A01 100T Lexson-A01 200T Lexson-A01 300T
Structure 4-post press 4-post press 4-post press 4-post press 4-post press

4-post press

Cylinder Pressure

13 Mpa 13 Mpa 18 Mpa 20 Mpa 20 Mpa 25 Mpa
Cylinder Force 100 KN 200 KN 500 KN 1000 KN 2000 KN

3000 KN

Cylinder Stroke

200 mm 250 mm 300 mm 300 mm 300 mm 300 mm
Max. Daylight 200 mm 250 mm 300 mm 300 mm 300 mm

300 mm

Bed Table

400*300 mm 500*400 mm 500*400 mm 600*500 mm 800*600 mm 1000*800 mm
Closing Speed 150 mm/s 180 mm/s 175 mm/s 130 mm/s 135 mm/s

130 mm/s

Pressing Speed

10~25 mm/s 12~23 mm/s 12~30 mm/s 10~22 mm/s 10~30 mm/s 10~28 mm/s
Return Speed 150 mm/s 160 mm/s 155 mm/s 150 mm/s 145 mm/s

150 mm/s

Motor

4 Pole, 2.2KW 4 Pole, 3KW 4 Pole, 4KW 4 Pole, 7.5KW 4 Pole, 11KW 4 Pole, 15KW
Power Supply 3Phase, 220/380/415/480VAC, 50/60HZ 3Phase, 220/380/415/480VAC, 50/60HZ 3Phase, 220/380/415/480VAC, 50/60HZ 3Phase, 220/380/415/480VAC, 50/60HZ 3Phase, 220/380/415/480VAC, 50/60HZ

3Phase, 220/380/415/480VAC, 50/60HZ

Overall Dimensions

750*700*1850 mm 850*800*1980 mm 880*800*2080 mm 1000*900*2250 mm 1290*1055*2350 mm 1575*1150*2550 mm
Approx. Weight 1.5 Ton 3 Ton 4 Ton 5.5 Ton 8 Ton

10 ton

OPTIONS

•  Top mounted hydraulics
•  Anti-tie-down, anti repeat controls with ring guards
•  Safety photoelectric light curtain covering the entire stroke
•  Safety interlocked hinged mesh guards on sides
•  Removable base
•  Portable operator console
•  Color HMI
•  Linear position sensor
•  Load sensor
•  Automatic tie bar lubrication
•  T-slotted moving and bed platens
•  Tapped threaded holes on moving and bed platens
•  Single/double work table is optional
•  Sliding table for convenient loading and unloading material and product

HOT-SALE PRODUCTS

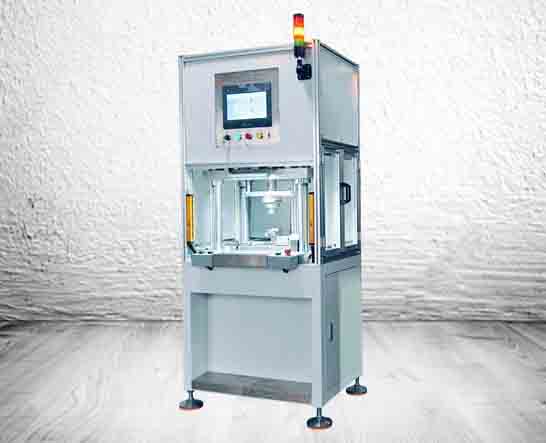

Lexson’s most popular hydraulic press, maybe you want to see these products
